Features and Benefits
- Line-interactive UPS with stepped sinewave output
- Fuse protection
- Built-in boost and buck AVR for clean and stabilized output power
- Overload protection and alarm
- Auto restart function when AC source recovers
- 2x Universal sockets for hassle-free connection
- Microprocessor control for high guaranteed system reliability
- Ample space for large plugs
- High Surge Resistant
- Lightweight and compact size
- 3 Colors LED status light

Technical Specifications :

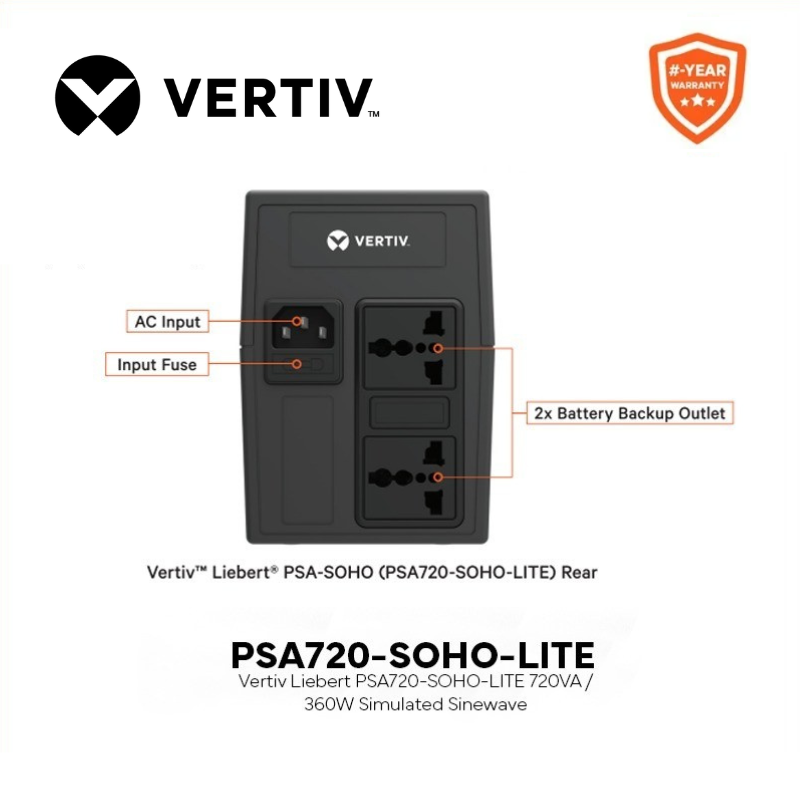

Model Number : PSA720-SOHO-LITE - Capacity (VA/W) : 720/360

Physical
- Unit Weight, kg. (lb.) : 4.4 (97)
- Unit Dimensions, W x D x H mm (in.) : 101 x 298 x 142 (4.0 x 11.7 x5.6)
- Shipping Weight, kg. (lb) : 4.9 (10.8)
- Shipping Dimension, W x D x H mm (in.) : 142 x 350 x 213 (5.6 x 13.8 x 8.4)

Input
- Voltage : 230VAC
- Input Voltage Range : 170-280VAC, Single Phase
- Input Frequency : 50/60 Hz (Auto Sensing)
- Online Frequency Range (50Hz/60Hz) : 45-55Hz 1Hz/ 55-65Hz 1Hz

Output
- Output Voltage (Utility Power Normal) : 230VAC, Single Phase
- Output Voltage (Battery Operation) : 230 ± 10%
- Transfer Time : Typical 4-8ms, 10ms max
- On-Battery Wave Form : Stepped Sinewave
- Output Frequency Battery Mode : 50Hz/60Hz ±1Hz

Battery
- Battery Type, VDC Ah Quantity : 12V x 7Ah x 1
- Typical Recharge Time : 6-8 Hours to 90%

Operating Environment
- Operating Temperature, °C :0 to 40
- Storage Temperature, °C : -20 to 50
- Operating/Storage Relative Humidity : 0-90%, Non-condensing
- Noise Level : Less than 45 dB

Protection
- Full Protection : Surge, Short Circuit, Overload, Overcharge, and Over Discharge Protection

Indicators
- LED Display (LED version) : AC Mode, Battery Mode, Overload, Fault

Alarm
- Battery Mode : Sounding every 10 seconds
- Low Battery : Sounding every 1 second
- Overload (at Normal Mode) : Sounding every 0

Suitable Use
1. Data Network: Mid - range Servers (Windows and Linux), Wi-Fi Applications & Data networks
2. Small Data Center Rooms
3. Voice Networks: Cellular Sites, Voice Over IP (VOIP), Very small Aperture Terminals (VSAT) PBX And IT-enabled PBX Automation industries
4. Process Automation : Equipment: Programmable Logic Controllers (PLS) and Cash Machines(ATM)

Battery
- Battery Type : 12 V / 9 AH
- Battery Numbers : 2
- Recharge Time : 4 hours recover to 90% capacity (Typical)

Output Voltage
- Output Voltage : 208/220/230/240VAC
- Output Power Factor : 0.9
- AC Voltage Regulation : ±1% (Battery Mode)
- Frequency Range : 47 ~ 53 Hz or 57 ~ 63 Hz (Synchronized Range)
- Frequency Range (Battery Mode) : 50 Hz ± 0.5% or 60Hz ±0.5%
- Overload : Ambient Temp.<35°C
- 105%~110%: UPS shuts down after 10 minutes at battery mode or transfer to bypass when the utility is normal 110%~130%: UPS shuts down after 1 minute at battery mode or transfer to bypass when the utility is normal
> 130%:UPS shuts down after 3 seconds at battery mode or transfer to bypass when the utility is normal
- Harmonic Distortion : < dari sama dengan 3 % THD (linear load); 6 % THD (non-linear load)
- Transfer Time : AC Mode to Batt : Mode Zero
- Inverter to Bypass : 4 ms (Typical)

Product Weight
- Standard Run Model : 9.8 KG - Dimensi Product : 282 × 145 × 220 mm

- High Line Comeback : 290 VAC ± 5 %
- Power Factor : lebih besar sama dengan 0.99 @ nominal voltage (input voltage)
- LCD Panel : UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
- Noise Level : Less than 50dBA @ 1 Meter
Smart RS-232/USB : Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC
